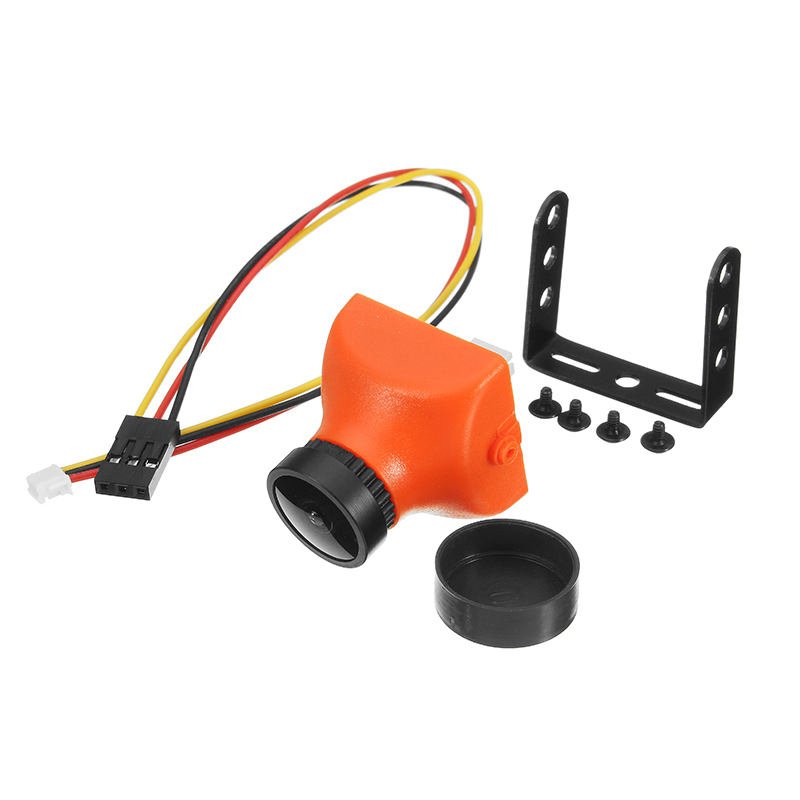

Item Name : 1200TVL Mini Camera

Size : 25mm x 25mm

Weight : 9.5g

Format : PAL / NTSC (default PAL system, NTSC system can be selected)

PAL: 1920H×1080V(1MP)

NTSC: 1020H×1920V (1MP)

Horizontal Resolution : 1000TVL

Video Output : 1.0Vp-p/75

AGC :  0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB
Min. illumination : 0.005

WB : ON/OFF

Exposure Type:  electronic exposure

Electronic Shutter :  1/50(1/60) - 1/100000 second

Gamma Correction :  0.45/1.0

Synchronization Mode : inter-sync

Lens : 2.5mm 130/2.8mm  120 optional

Specification :

Working Voltage : DC5-12V(wide voltage , measured 5-13V)

Working Current : 70mA(ow power consumption)

Working Temp. :  -20--60

Wetness: 0% ~ 98%


Package Included :

1 x 1200TVL Mini Camera

1 x Cable
