48 channels: Cover A, B, E bands and F band (Airwave band), 4 bands and all frequencies compactable;
Two switching buttons: CH button for frequencies channels switching, FR button for frequencies bands switching;
Two digits display: one for CH and the other for FR, real-time positioning which frequency band and which channel received;
Power off memory: Replay the very last frequency band and channel
Independent video and audio signal outputs

Product Details

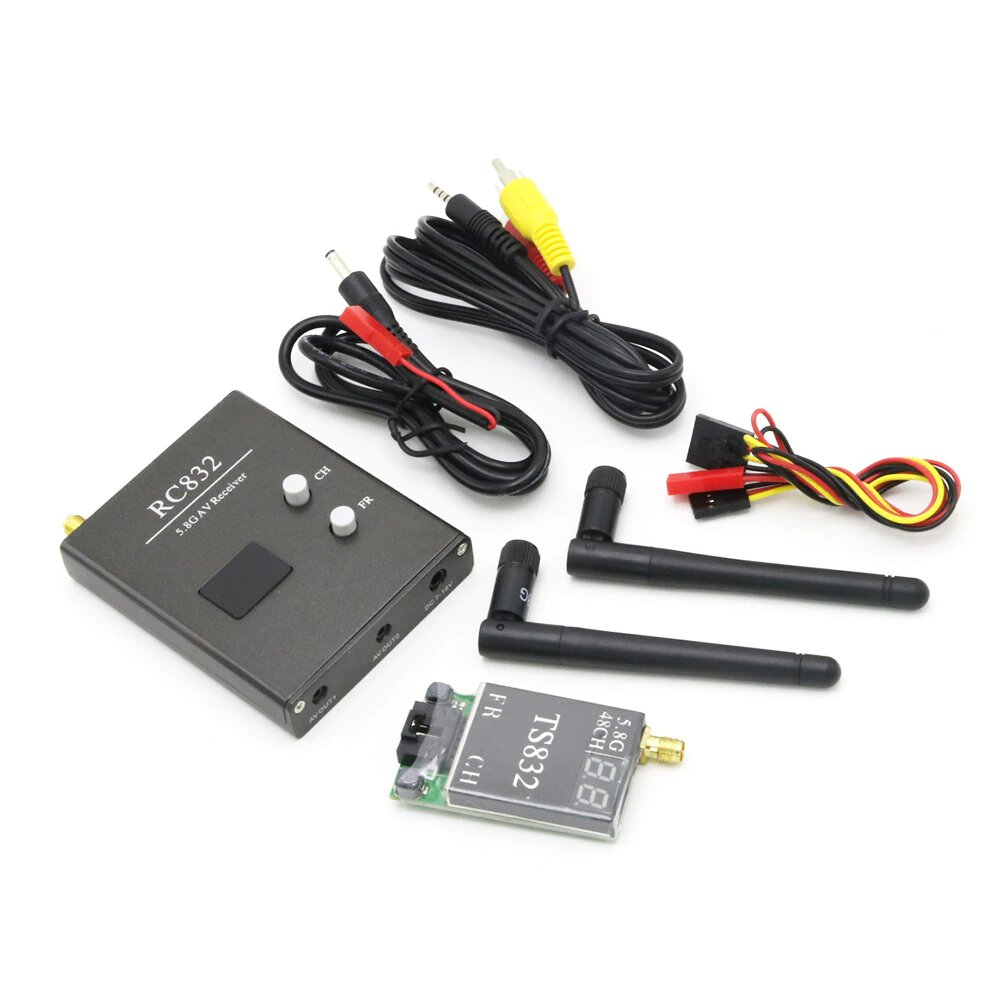

FPV 5.8G 600mW A/V Transmitting/Receiving System TS832 + RC832 - 32CH Edition | RP-SMA video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack (module side, both TX and RX)

TX TS832 specs:

Power input: 7.4-16V (3S Lipo suggested)
Transmitting power: 600mA
Antenna gain: 2db
Working current: 220mA at 12V
Video bandwidth: 8M
Audio bandwidth : 6.5M
Weight: 22g
Dimension: 54x 32x 10mm(excluding antenna)


RX RC832 Specs:

Power input: 12V
Working current: 200mA max
Antenna impedance: 50
Antenna gain: 2db
Video impedance: 75
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
Weight: 85g



Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.



- 1 x transmitting unit (TX)
- 1 x receiver (RX)
- 2 x antennas (2db)
- 1 x Power cable for rc832
- 1 x power cable for tx832
- 1 x user manual
