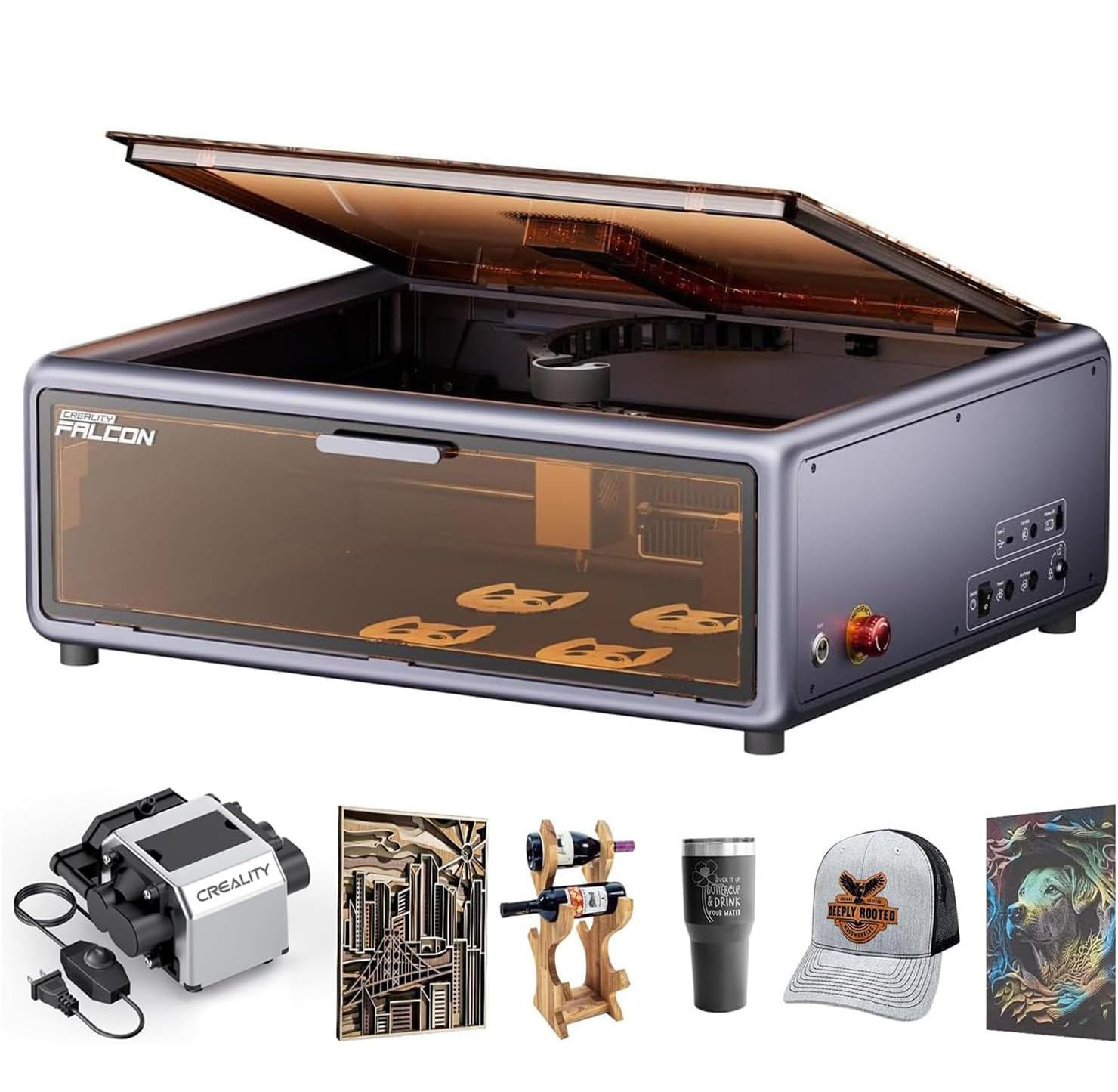

Creality Falcon A1 — Enclosed 10W diode laser engraver & cutter (smart camera, CoreXY 600 mm/s, Class-1 safety)

Bring safe, precise laser making to homes, classrooms, studios, and small businesses. Falcon A1 combines an enclosed, Class-1 design with a built-in HD top camera, auto material recognition, CoreXY motion up to 600 mm/s, and included air-assist equipment. It’s pre-assembled, space-efficient, and ready to cut and engrave a wide range of materials with sharp 0.06 × 0.08 mm detail.

KEY FEATURES

• Enclosed Class-1 system with eye-protecting cover, lid-open safety stop, and emergency-stop button. Observe jobs safely without goggles.

• Built-in HD top camera for live preview, accurate placement, one-click batch fill, and outline extraction.

• Auto recognition of “Falcon-selected” materials via QR system to apply recommended parameters quickly.

• CoreXY motion up to 600 mm/s with auto belt tensioning for smooth, precise movement.

• Included air-assist equipment and exhaust hookup for cleaner edges and less smoke.

• Pre-assembled; compact footprint with large viewing windows and die-cast metal frame.

DETAILED SPECIFICATIONS

Laser & Optics

• Laser type: Diode (semiconductor) laser

• Optical output power: 10 W

• Compressed spot size: 0.06 × 0.08 mm (fine engraving detail)

• Wavelength: 455 ± 15 nm

• Laser class: Class 1 (FDA)

• Typical capabilities (material-dependent): Engraving and cutting of wood, acrylic, leather, paper/cardboard, fabrics, rubber, certain plastics, etc.

Work Area & Motion

• Engraving area (W × D): 305 × 381 mm

• Motion system: CoreXY, up to 600 mm/s; auto XY belt tensioning

• Camera: Built-in, full-frame top camera for WYSIWYG placement and batch workflows

Enclosure, Exhaust & Air Assist

• Enclosure: Fully enclosed body with high-transparency, laser-filtering cover; 360° visibility

• Safety stops: Lid-open stop; emergency-stop button; “smart leakproof” design

• Exhaust: Rear exhaust port with hose and clamp included

• Air assist: Equipment included; adjustable airflow for cleaner cuts (connects to the enclosed unit)

Software & Workflow

• Supported software: LightBurn, LaserGRBL, Falcon Design Space

• Operating systems: Windows / macOS

• Supported file types: JPEG/JPG, PNG, BMP, SVG, DXF, etc.

• Workflow: Live camera placement or offline via exported G-code; pre-set material profiles for Falcon-selected materials

Electrical

• Input voltage: 100–240 V AC, 50–60 Hz

• Output to machine: DC 24.0 V, 5.0 A

• Maximum machine power: 120 W

• Operating temperature: 5–35 °C

Physical

• Product size (W × D × H): 567 × 468 × 196 mm

• Net weight: 15.55 kg

• Package size (W × D × H): 770 × 645 × 285 mm

• Gross weight: 25.74 kg

Certifications & Compliance

• Certifications listed: EC 60825, FDA, CE, RoHS, FCC, UL Report, PSE, SAA, RCM (Class-1 laser safety)

Supported Materials (examples)

• Wood (basswood, plywood, bamboo), leather, paper/cardboard, fabric, rubber, opaque acrylic, select plastics; metals and glass typically engrave with surface treatments or marking agents. Results vary by color, thickness, and composition.

In the Box (typical contents)

• Falcon A1 enclosed unit

• Air-assist equipment and silicone tube

• Exhaust pipe and hose clamp

• Power supply

• Basswood board (300 × 300 × 3 mm)

• Test calibration card

• Rotary-kit connection cable (rotary kit sold separately)

• Multi-level fixed-focus block

• USB Type-A ↔ Type-C cable

• Anti-static brush, Allen wrench

• Quick guides and warranty (contents may vary by region)
