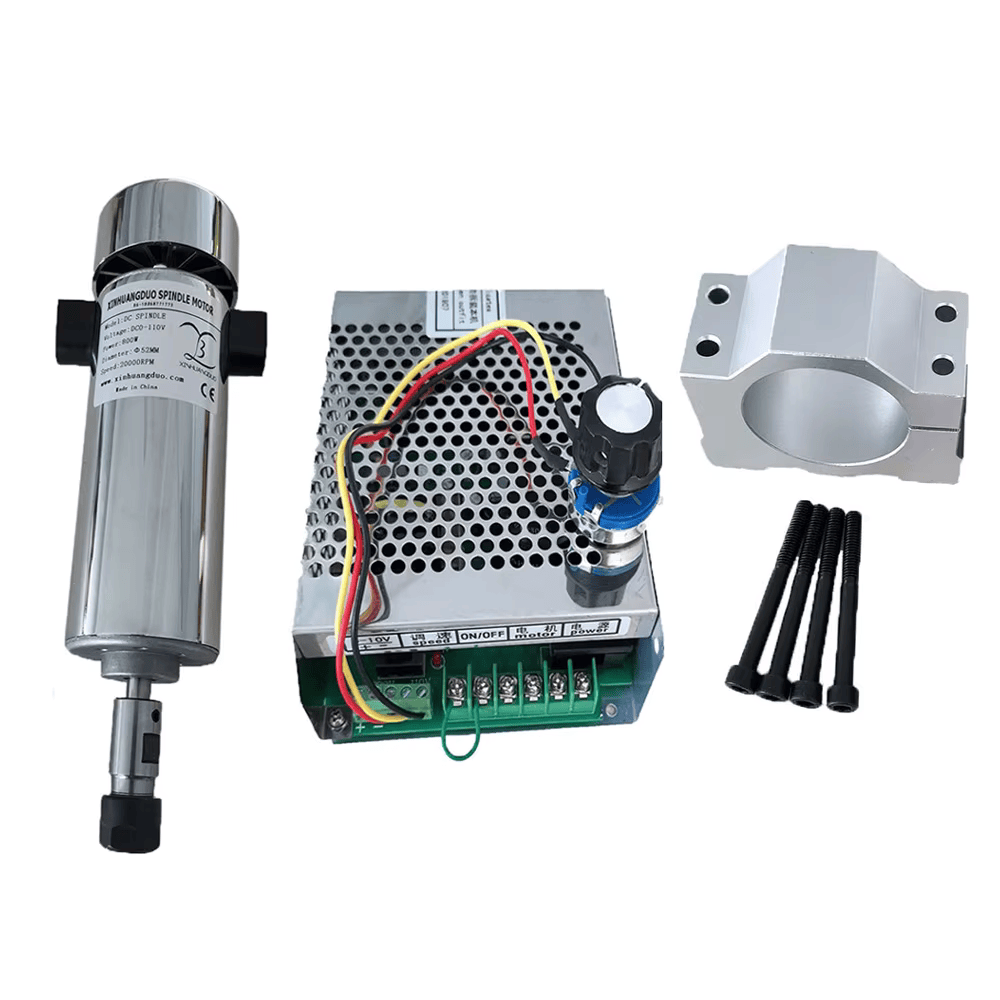

Feature:

1.Air Cooled Spindle:

Size:52mm

Power:800W

Maximum Torque:0.79Nm

Runout off:0.01mm-0.03mm

work Voltage:110VDC

Speed:5000-20000rpm

ER11 collet (3.175mm)

2.power supply:

Power Supply with speed governor:(Manual speed regulation)

Input:AC220V ± 10%50/60Hz

Adapter power:800W

Support mach3 function

this power regulator can adjust 110/220v according to customers' needs

3.52mm clamp :

1x 52mm Mount Bracket+4x Screws

Applicable to:300w 400w 500w spindle motor

Model: 52mm Spindle motor mount bracket

Diameter: 52mm

Material: Aluminum alloy

Spindle Motor Parameter:

Work voltage: 0-110VDC

Rotation speed: 5000-20000r/min

Power: 800W

Torque:0.79NM

Insulation resistance:>2Megohm

Dielectric strength:500V

Total length: 203.5mm

Diameter:52mm

Axis collet Length: 45mm

Repeat accuracy: 0.01-0.02mm

0.8KW Power Supply Speed Governor 800w Spindle Power Supply 110V/220V For DIY Engraving machine tool

  Feature:

with speed governor--------------Wasy to control the speed of 800w spindle motor !

1.Input:AC220V/110V ± 10%  50/60Hz   (Default )

2,Power :800W

3,Output voltage: 0-110V DC

4,Current: 6A

5. Dimension:  L190mm × W105mm × H60mm

6. Controller: Mach3

Note: If you need 110V, please adjust the power supply to 110V.
